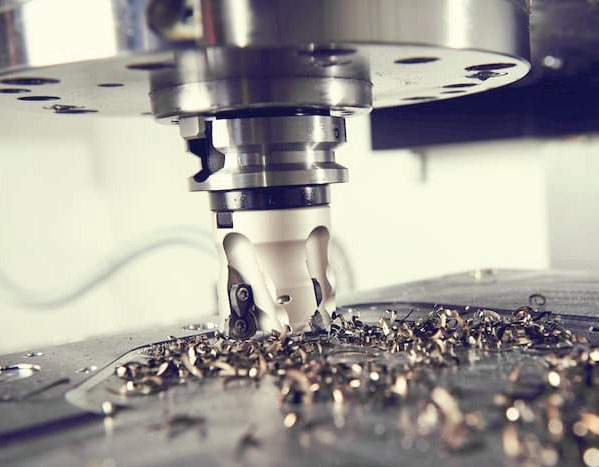

PLATE PROCESSING
Functions & Capacities:
Drilling : 10 to 100 mm
Milling : 10 to 80 mm
Tapping : M12 to M30
Face Milling : Various
Scribing : for marking
Plate Size to work o
Thickness : 6 to 100 mm
Width : 3000 mm maximum
Length : 3000 mm maximum

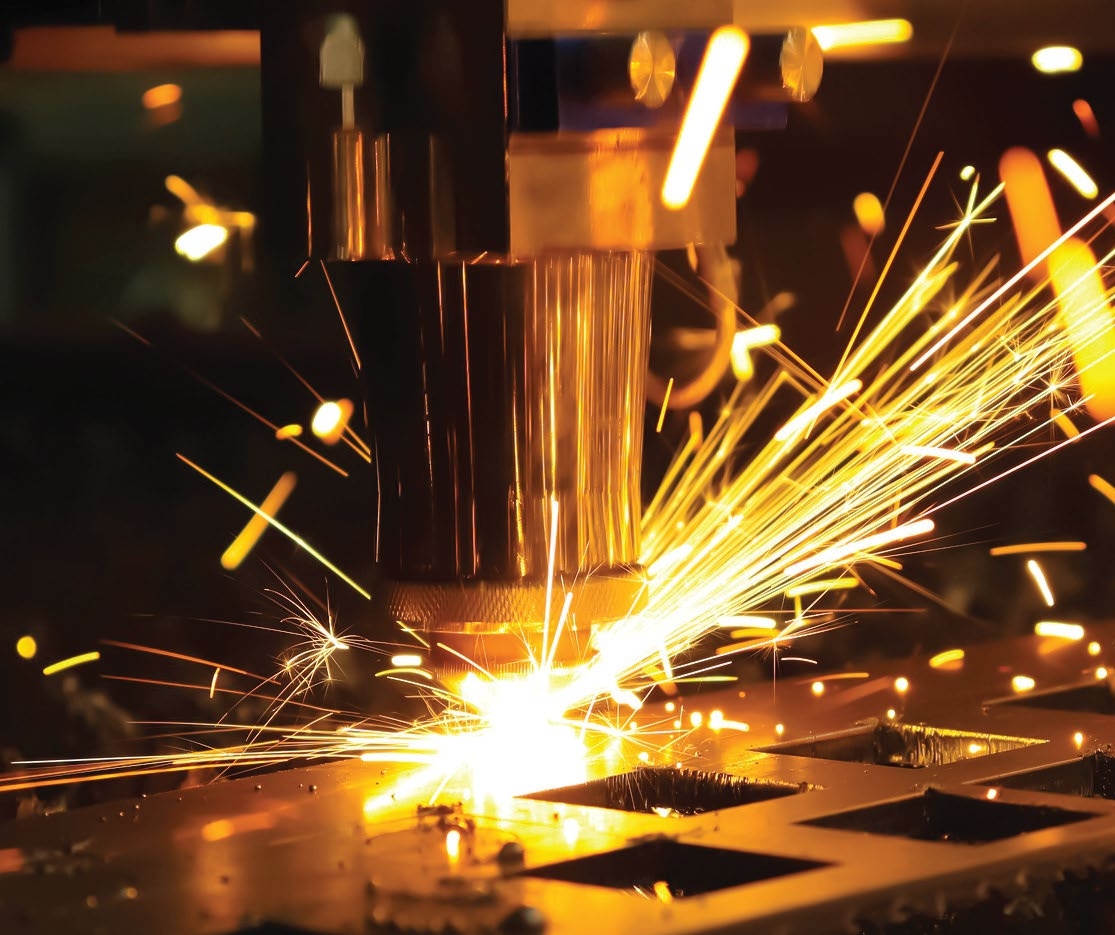

PLATE CUTTING, PLASMA & OXYFUEL
Functions & Capacities:
Plasma cut : up to 70 mm
Double Plasma Torch : Yes
Oxyfuel cut : up to 300 mm
Double Oxyfuel Torch : Yes
Oxyfuel Angle Cut : + 45° / – 45°
Plasma Marking : Yes
Plate Size to work o
Width : 3000 mm maximum
Length : 12000 mm maximum
STRUCTURE PROFILE SHAPES
Functions & Capacities:
Plasma cut : up to 40 mm
Plasma Angle Cut : + 45° / – 45°
Stitch cutting : Yes
Inkjet Marking : Yes
Able to cut any profile on the above specified shapes.
Shapes & Parameters:
IPE : 100 – 750 mm
HE : 100 – 1000 mm
UPN : 100 – 400 mm
BOX : 100×100 – 600×400
Maximum Length : 12 meters
Material Weight : up to 12 Tons

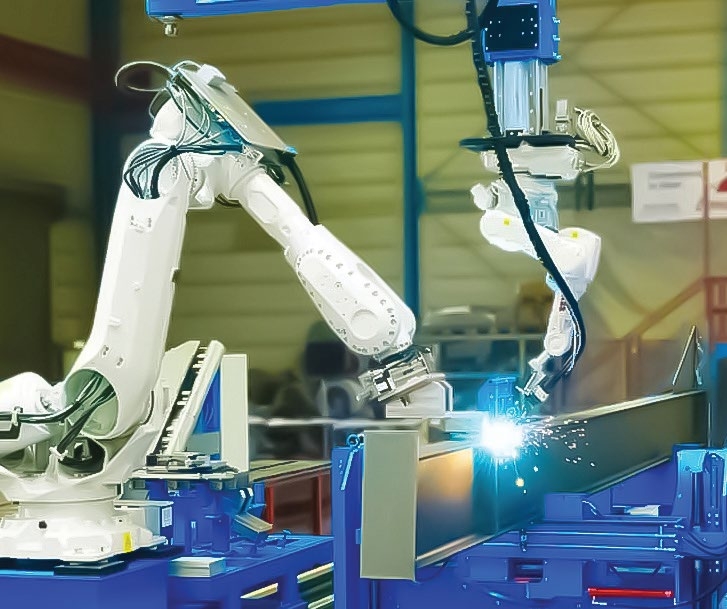

ROBOTIC TACKING, WELDING & ASSEMBLY
Functions & Capacities:
Beam Parameters:
Beam Height : 150 to 1100 mm
Beam Width : 80 to 500 mm
Beam Length : 3 to 16 meter
Types of Beam:
* Rectangular / Square Tubes* H Beam
* Tapered / Welded H – Beams* Corrugated SIN Beams
* U – Profiles (Channels)
Available ADD parts:
* Plates * Angles
* Tubes * U – Profiles
* Cleats (H & I) * T – Parts
Functions:
Automatic Tacking & Welding of parts to the beam
MAG Welding (Single & Multilayer)
Pre-heating of end plates
Auto measurements and tolerance compensation

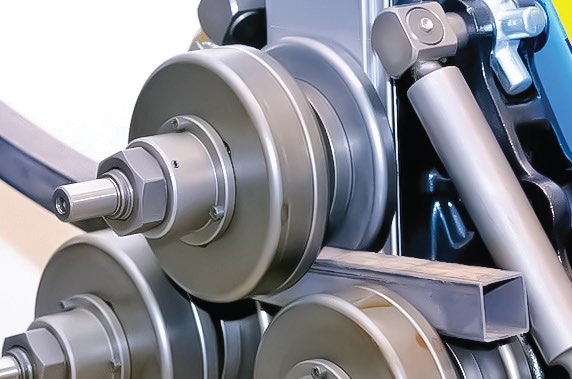

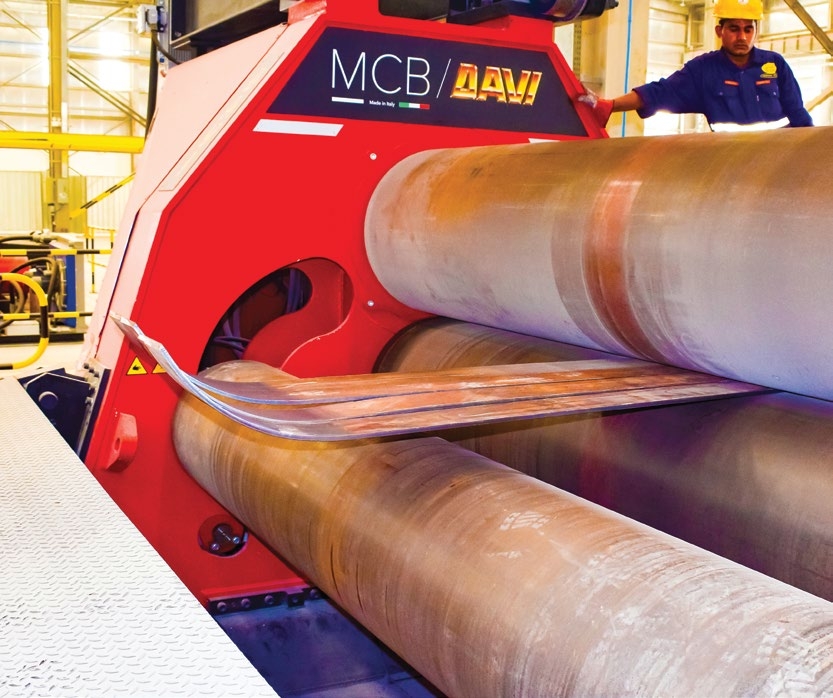

HYDRAULIC SECTIONS & PIPE BENDING
Functions & Capacities:
Flat : up to width 200 & thick 35 mm
Square Bar : up to 65 mm
Round Bar : up to 75 mm
Angle : 100x100x12 mm
Tee : 100x100x12 mm
Rectangular Tube : 50x120x4
Square Tube : 80×6
Round Tube : 141×3.4
Heavy Pipe : 114×6
UPN Easy way : 180 maximum
UPN Hard way : 120 maximum
IPE Easy way : 180 maximum
IPE Hard way : 120 maximum
H Beam Easy way : 120 maximum
H Beam Hard way : 100 maximum

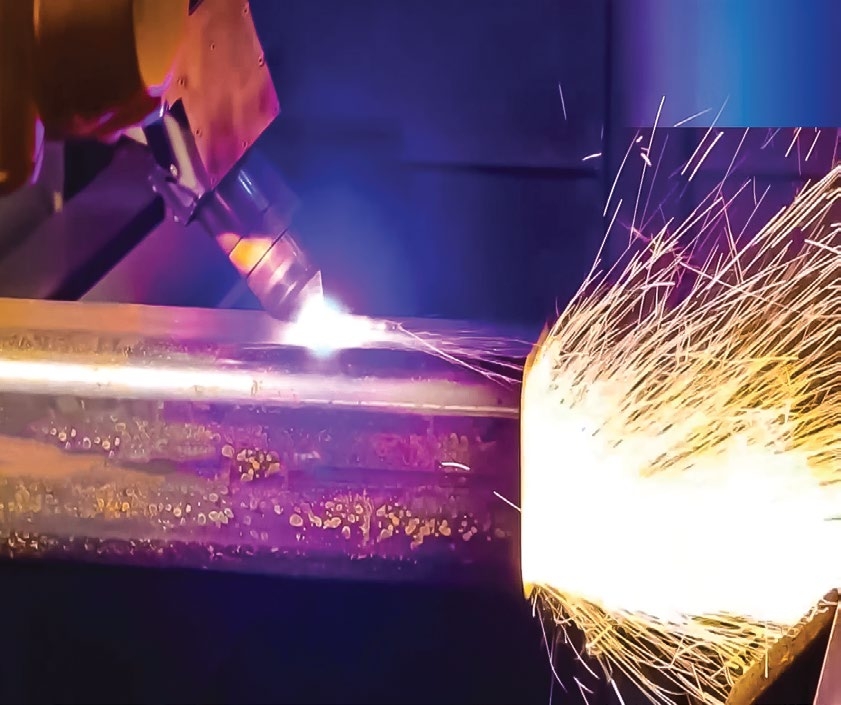

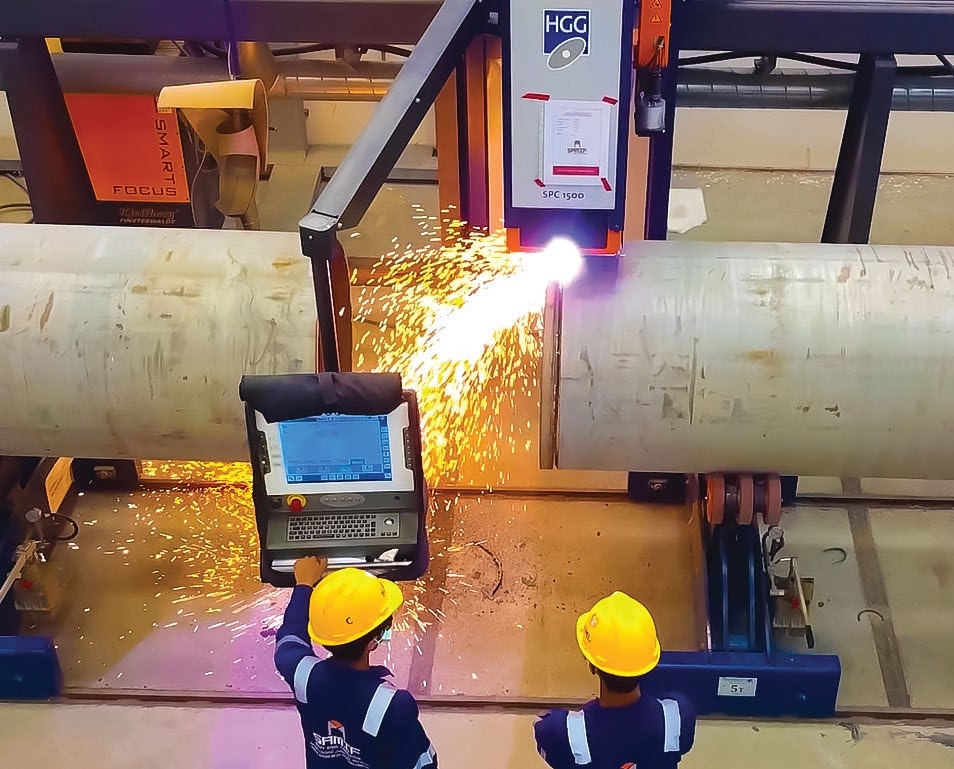

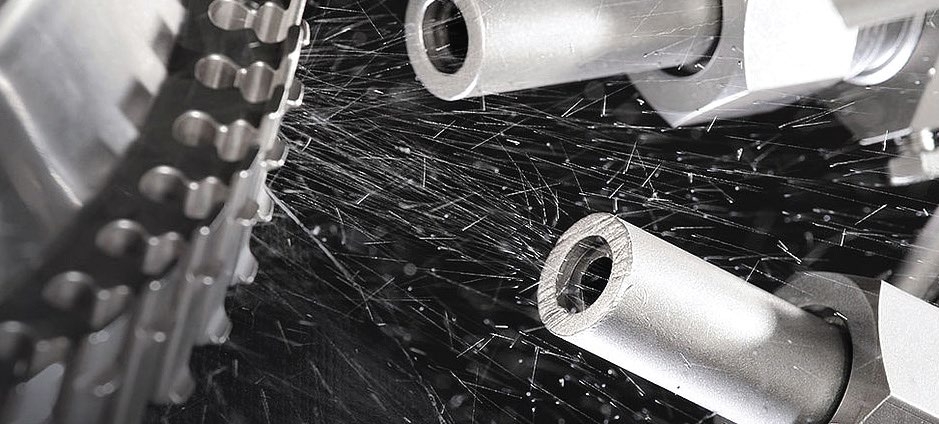

PIPE PROFILING
Functions & Capacities:
Plasma cut : up to 31 mm
Plasma Angle Cut : + 45° / – 45°
Oxyfuel cut : up to 150 mm
Oxyfuel Angle Cut : + 70° / – 70°
Inkjet Marking : Yes
Punch Marking : Yes
Plate Size to work o :
Minimum Diameter : 75 mm
Maximum Diameter : 1524 mm
Maximum Pipe Length : 12000 mm

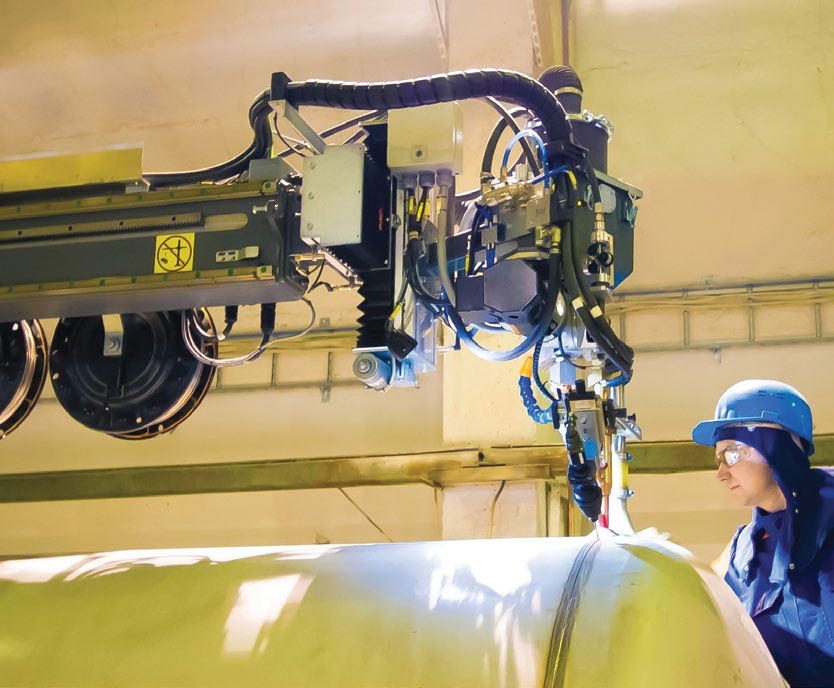

COLUMN & BOOM 7X7
Functions & Capacities:
SAW Welding
Capacities:
A smooth 360-degree lockable rotation
Overall Height (Motorized Carriage) : 8445 mm
Boom Length : 8700 mm
Vertical Under Boom : 1000 – 7000 mm
Boom Range Horizontal : 7000 mm
PIPE PROFILING
Functions & Capacities:
Plasma cut : up to 31 mm
Plasma Angle Cut : + 45° / – 45°
Oxyfuel cut : up to 150 mm
Oxyfuel Angle Cut : + 70° / – 70°
Inkjet Marking : Yes
Punch Marking : Yes
Plate Size to work o :
Minimum Diameter : 75 mm
Maximum Diameter : 1524 mm
Maximum Pipe Length : 12000 mm

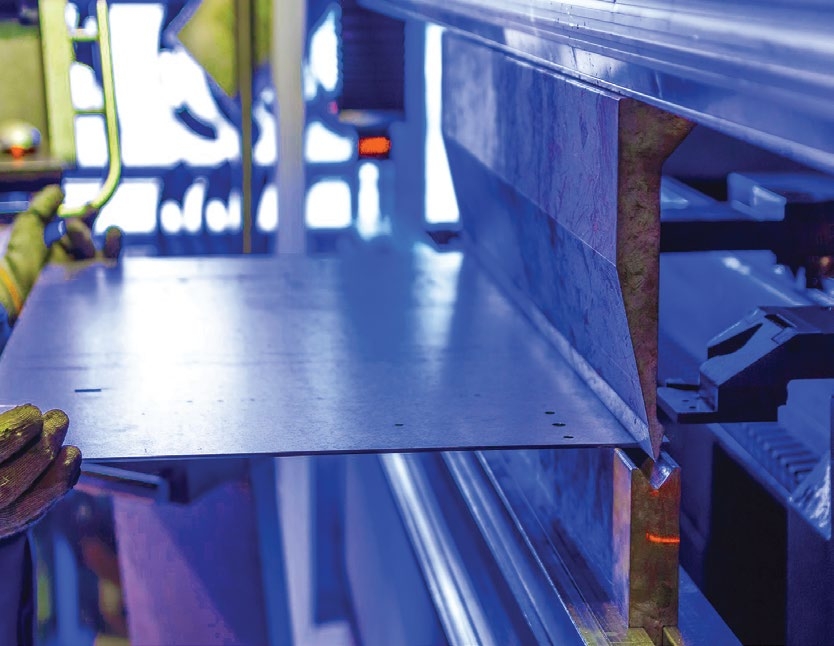

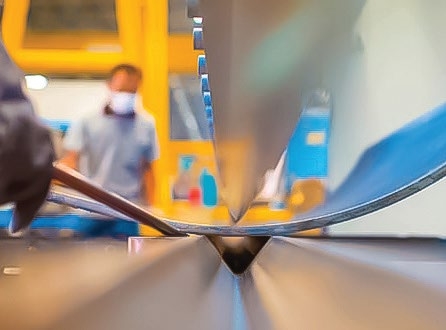

CNC PRESS BRAKE
Functions & Capacities:
Minimum Plate Thickness : 1 mm
Maximum Plate Thickness : 60 mm
Maximum Bending Length : 6100 mm
Bending Force : 880 Tons
Maximum Pressure : 275 Bar

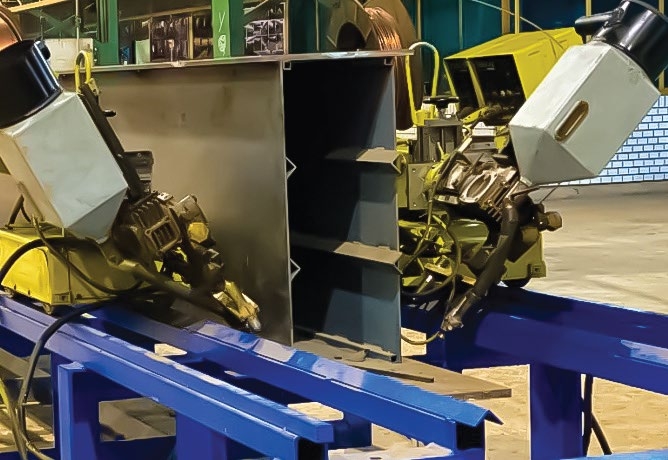

BEAM WELDING LINE BUILT-UP SECTION
Functions & Capacities:
Web Thickness : 4 to 50 mm
Web Height : 200 to 3000 mm
Flange Thickness : 6 to 60 mm
Flange Height : 150 to 1500 mm
Beam Length : 4 to 20 meter
Types of Beam:
T Beam
H Beam
Box Beam
Star Beams
Sandwich Plate
Conical Beam

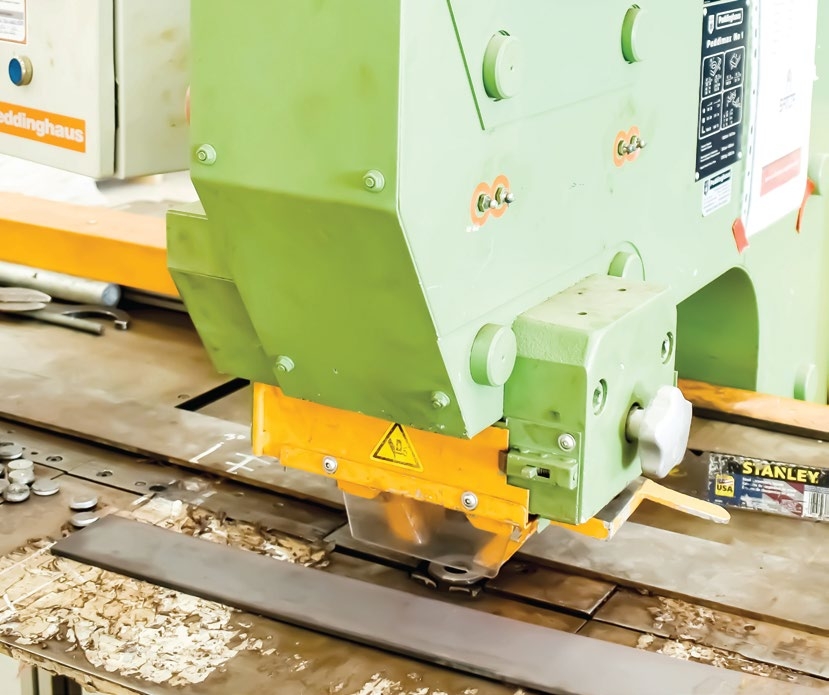

IRON WORKER
Functions & Capacities:
Shearing
Flat Bar : Width 500x Thk. 20 mm
Angle Iron : Width 150 x Thk. 12 mm
Round Bar : 8 to 50 mm
Square Bar : Sq. 8 to Sq. 50 mm
Channels : UPN 40 to 180
I Beams : 80 to 180
Punching
Punch Diameter : 8 to 24 mm
Can punch in Web as well as Flange of Channels & Beams
Notching
Square Notch & Triangular Notch
Notch Width 65 mm maximum in 13 mm plate
Can punch in Flange of Channels & Beams
CNC SHEARING
Functions & Capacities:
Shearing Length : up to 3000 mm
Shearing Width : up to 1000 mm
Thickness : 25 mm CS
Thickness : 12 mm SS
Meter Cutting : Yes by marking cutting line on
plate and with laser reference
SHOT BLASTING
Size to Work On:
INLET & OUTLET ROLLER CONVEYOR:
Length : 12 meters
Working width : 2500 mm
PNEUMATIC PAINTING BLASTROOM
Functions & Capacities:
INTERNAL DIMENSIONS
Length : 30 meters
Width : 6.0 meters
Height : 6.0 meters
Meter Cutting : Yes by marking cutting line on
plate and with laser reference
